[Circuitbenders]

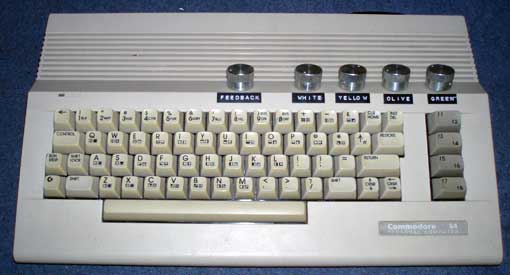

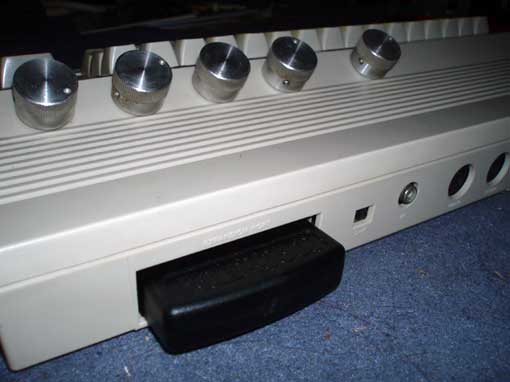

Thanks to the nice people at www.prophet64.com and their brilliant synth cartridge i am now the pround owner of a beast of an analogue synth in the form of a modded commodore 64. The TB303 emulation actually sounds like what i always wanted the bottom end of a 303 to sound like i.e. huge meaty bass!






Mods consist of:

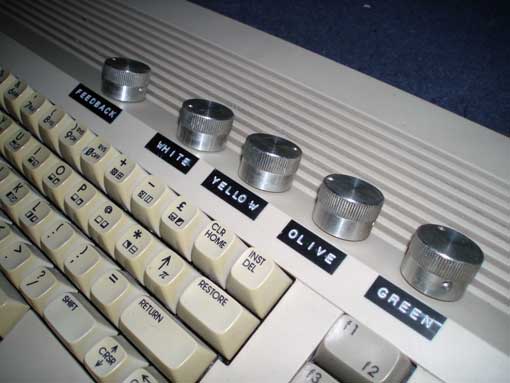

4 assignable control knobs
Feedback / resonance knob

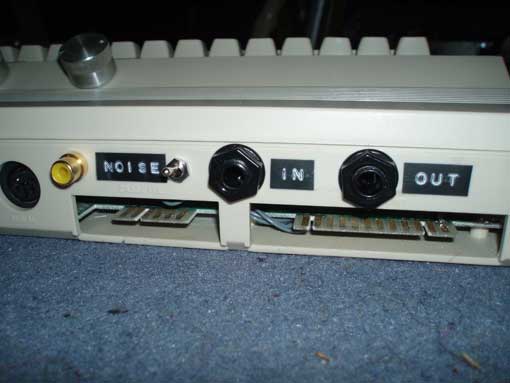

Composite Video output
Noise floor / feedback knob on-off switch
Audio in to filter
Audio out jack

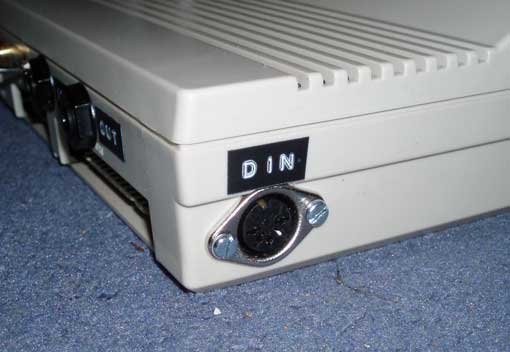

DIN sync

I've got one quick demo at the moment, i'll upload some more when i have time
DEMO1

Now thats what i CALL analogue!

[Griffin]

Very nice - I just ordered a synthcart for my Atari 2600, which has some crunchy beats going. Excitement!

[nochtanseenspecht]

absolutely wicked !! you deserve more karma !

[andy_wheels]

awesome!

now, how about a sinclair zx'moog'spectrum?

[iqoruvuc]

Nice one!   Did you install a second SID chip when you did the mod?  I saw a good tutorial via getlofi.com and seemed the mod is a bit fiddly in parts, but from the sound example you posted it seems well worth the work.  I look forward to the other samples

[Circuitbenders]

Very nice - I just ordered a synthcart for my Atari 2600, which has some crunchy beats going. Excitement!

My synthcart turned up yesterday by an uncanny coincidence, can you tell me what voltage atari 2600's work on so i don't have to make any effort finding out?

Nice one!   Did you install a second SID chip when you did the mod?  I saw a good tutorial via getlofi.com and seemed the mod is a bit fiddly in parts, but from the sound example you posted it seems well worth the work.  I look forward to the other samples

I haven't installed another SID on this one mainly because the only other one i had handy was an older 6550 which i'm told won't stack properly with a newer 8550. On the plus side the prophet 64 people make a board that allows you to easily mount another SID for just 4 euros http://www.prophet64.com/sid2sid.php

[Griffin]

My synthcart turned up yesterday by an uncanny coincidence, can you tell me what voltage atari 2600's work on so i don't have to make any effort finding out?

I'd love to, but I have not been able to get a unit yet. This link says the power cable converts the normal 120 volts AC from your wall plug into 9V DC
http://www.classicgaming.com/2600ce/details/hiwpower.html

[Signal:Noise]

That is downright sexual. I wants one.

[ne7]

heh - very nice - as a c64 head myself its nice to see people messing with it

[Many_boomers]

flipin sweet

[Circuitbenders]

Heres another couple of demos i just discovered on the server.

DEMO2
DEMO3

I seem to have lost the recording i did of the drum machine synth and a whole load of hoovery stuff

[Bat]

KINKY and FAT!!!

That's the way i like it.(Soundways i mean. )

[djsynchro]

Wow that C64 sure sounds good... I had one when I was young, can't remember it sounding that good ever...
Did you bend your Atari2600 yet? any tipz?


[computer at sea]

I just picked up what I thought was a C64 at a thrift shop.

I glanced in the box to verify that the power supply was included, but didn't think to check that the model of the computer matched the box.

Turns out I got a Commodore VIC 20.  Has anyone ever heard about anything to be done with one of those?

[Circuitbenders]

Theres a really good speech synth cart for the VIC20 in existance but you'd have to keep your eye on ebay to find one. I'm not entirely sure what sound chip the VIC20 has but you can make an audio out

http://www.ntrautanen.fi/computers/hardware/misc/vic_video.htm
