KORG POLY800 MDK (Midi Dump Kit): £22

The Korg Poly800 MDK was an upgrade kit for the Poly800 mkI that Korg released for what seems like about 20 minutes in the late 80's. What is does is allow you to load and dump the entire patch memory to and from your synth and your computer via midi system exclusive (sysex) data.
The original Poly800 mkI's only allowed you to save and load sounds from cassette, like on early home computers, although WAV or mp3 recordings of the audio data played from your computer also work once you've figured out the correct levels.

The EX800 already has the ability to transfer data over sysex. The fact it has no keyboard and so therefore didn't need the keyboard scanning routines in the operating system, gave Korg some extra space to add the facility for sysex transfer.

Korg MDK kit

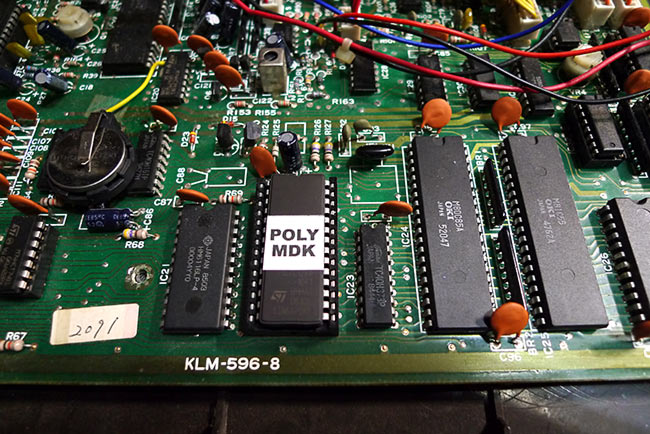

This kit consists of an updated operating system in the form of the POLY MDK EPROM chip, a small MDK PCB, a couple of PCB mounts, and an eight way wiring loom.

Pol800 midi dump kit

Due to the fact that the chinese sellers we buy the wiring looms from seem to be incapable of sending us cables with the same colour sequence of wires more than twice in a row, we now have three different versions of the build guide. They are all identical apart from the colour order of the wires. As you will see when you read the guide, this is important.
If you're just checking out how easy this is to install you can use any of them, but to avoid any confusion later on its probably best to go with the latest V3 one.

The original build guide can be downloaded HERE,
Year: 2015 to 2018
Wire colour sequence: RED, BLACK, YELLOW, WHITE, GREEN, BLUE, GREY, ORANGE
Notes - unless you have an old kit that was never installed you'll probably need a later guide version

The V2 build guide can be downloaded HERE,
Year: 2018 to 2020
Wire colour sequence: RED, BLACK, YELLOW, GREEN, BLUE, WHITE, BROWN, GREY
Notes -

The CURRENT V3 build guide can be downloaded HERE,
Year: February 2020 onwards
Wire colour sequence: RED, BLACK, YELLOW, BLUE , GREEN, WHITE, GREY, BROWN
Notes - Use this guide if you are buying now.



Installation is quick and easy, although you will need to cut a couple of PCB tracks and solder in a few wires.

The original operating system on the Poly800 mkI has a known bug in it that can cause parts, or all of the sound memory to be erased under specific circumstances involving certain midi operations. We have not been able to replicate this bug using the updated operating system used in this mod. There is every possibility that Korg fixed this issue with this OS release, although we cannot say this with absolute certainty as is difficult to claim a fault isn't there when you aren't 100% sure how to reliably force it to happen!

Below are a couple of Poly800 mkI sound banks that we have found on the net as WAV files, and have converted into midi sysex files via this mod. They can be quickly loaded into a MDK equipped poly800 via a midi utility program like MidiOX

Factory Sound Bank - DOWNLOAD
Xan Sound Bank - DOWNLOAD



KORG POLY800 Midi Dump Kit: £22

Payments are processed via Paypal, but you can pay using a credit or debit card without having a Paypal account. If you want to pay using some other method, please get in touch via the CONTACT page. Please note, we cannot accept a return on a kit once an attempt has been made to install it.
