When the Casio SK-5 is circuit bent it becomes somewhat unplayable from the keyboard when using the new modifications as you tend to find that each key will do something completely different to every other key, the effects don't actually play in tune up and down the keyboard in any kind of meaningful way, or using certain effects the keyboard is disabled and effects are only applied to looped samples, but as a bizarre FX and alien soundscape generating machine it is unsurpassed. The SK-5 mods are much the same as the SK-1 version but with a couple of differences.

Circuit bent casio SK5


Patchbay - Exactly the same as the main patchbay area on the SK1 version. This consists of 16 x 3.5mm jack sockets that can be linked together using patch cables.
Each connection made produces different effects including all kinds of sample destruction, distortion, chopping, sample splicing, ring modulation, bit crushing and alien warping of both the sampled sounds and the preset sounds. Connections can be made at any time and often have completely different effects depending on which sound is being used. The patchbay method allows hundreds of different effects to be produced with single or multiple patching cables.

Installing the patchbay means that the internal speaker must be removed from the machine but the audio output jack is still fully functional.

modified Casio SK5

Patching Sources and Switches - These are 3 sockets on the top left of the panel. Each socket has its own associated switch which can turn on/off any effect made by patching between the patching sources and the main patchbay. Many of the most dramatic and useful effects available are sourced from these sockets and can be activated at the flick of a switch.
These three sockets should never be directly patched together, so a label is added to warn against this.

circuit bent Casio SK5

Drum Pitch Knob - This knob of the right hand side controls the pitch of the percussion, including the laser, lion and bongo pad sounds. This knob doesn't change the speed of the drum loops but takes the pitch from crunchy 8 bit grinding at the bottom to sharp blips at the top. The screaming aliasing of the percussion sounds at low pitch settings has to be heard to be believed.

circuit bent Casio SK5

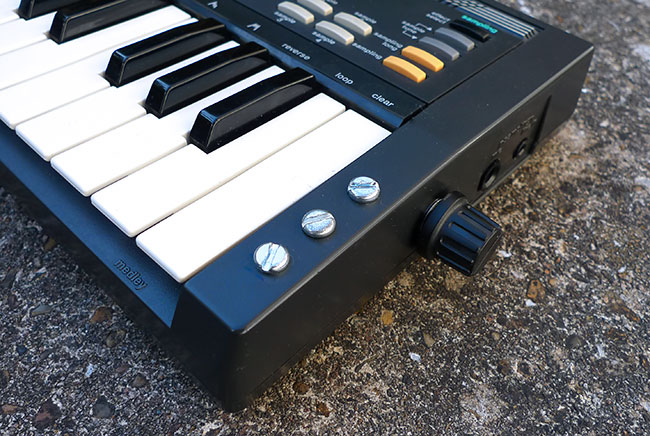

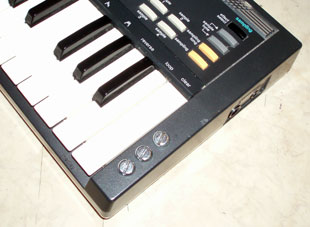

Drum Pitch Body Contacts - These consist of three bolts on the right of the keyboard. When you touch them individually or together they cause total chaos with the percussion pitch. Different effects are obtained depending on which contact or contacts that you touch i.e. touching contact 1 causes a slight pitch change but touching contact 1 and 3 causes the drums to drop to subsonic groaning, or 3 and 2 might take the drums up to chipmunk pitch levels. The effect varies in accordance to how much skin you have in contact with the bolt head. If you lick your finger tips beforehand, stronger effects are obtained.

Soft Reset - If the machine appears to have locked up, the red button on the rear will usually reset it without having to turn it off and back on.

Click on the demo's below for mp3's of what these mods can do.

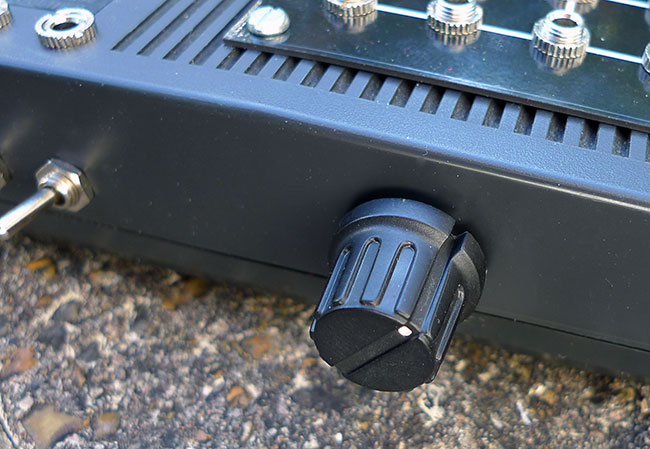

This optional pitch knob and associated switch controls the clock speed, and therefore the pitch of the unit. The switch is to change between the standard pitch, so you can actually play in tune if you want, and the pitch as controlled by the knob.
The reclocking knob is the knob you can see on the left hand side of the machine.

Casio SK5 reclocking knob

The knob effects both the preset sounds and the sampled sounds, along with slowing down and speeding up the tempo of the drop loops. The sample time can be extended massively by recording samples with the pitch / clock rate set lower than normal. As you sample with a lower and slower clock rate, the samples are recorded at a progressively lower sample rate. This means excellent 'bitcrusher' style effects can be achieved by sampling with a lower sample rate and then playing back at the normal speed

If you want your SK5 modded get in touch using the CONTACT form.
